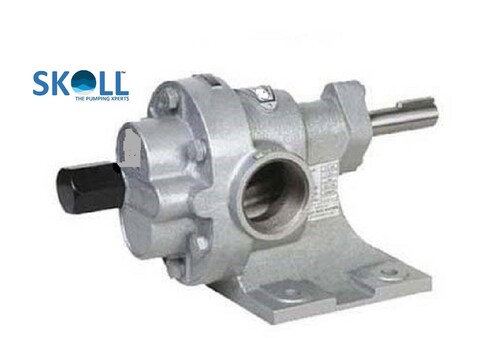

SKOLL Rotary Gear Pump

Name: SKOLL Rotary Gear Pump
Brand: ROTOPOWER PUMPS & MOTORS PRIVATE LIMITED
Price: 1800 INR
Availability: InStock

1800 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz
Discharge Pressure up to 10 bar
Working Temperature Up to 80C
Control System Manual / Automatic
Inlet/Outlet 25 mm x 25 mm
Noise Level Low Noise
Mounting Type Base Mounted
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

SKOLL Rotary Gear Pump Price And Quantity

Price 1800 INR/Piece
Minimum Order Quantity 1 Piece

SKOLL Rotary Gear Pump Product Specifications

Suction Type Positive Suction
Head Size up to 80 meters
Material Cast Iron Body, SS Shafts
Fuel Type Diesel, Oil, Lubricants
Standard ISO 9001 Certified
Speed 1440 RPM
Flow Rate up to 300 LPM
Seals Type Mechanical Seal
Features Rust Proof, Smooth Operation, Low Maintenance
Pump Type Rotary External Gear
Max Suction 5 meters
Application Other
Capacity up to 18 m/hr
Inlet/Outlet 25 mm x 25 mm
Usage Other
Discharge Pressure up to 10 bar
Power 0.5 HP to 10 HP
Working Temperature Up to 80C
Pressure up to 10 bar
Priming Self Priming
Control System Manual / Automatic
Frequency 50 Hz
Theory Rotary Gear Pump
Voltage 220-415 V
Caliber 25 mm
Structure Compact, Rigid Construction
Noise Level Low Noise
Mounting Type Base Mounted

Viscosity Handling upto 1,00,000 SSU
Port Size Customizable as per requirement
Shaft Material Stainless Steel
Surface Treatment Powder Coated / Painted
Direction of Rotation Clockwise/Anticlockwise
Service Available on request

SKOLL Rotary Gear Pump Trade Information

Supply Ability 100 Piece Per Month
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Domestic Market All India

Product Description

USAGE :

Single helical gears
Hardened & ground shaft
Max. capacity -500 Lpm
Max. pressure 10 kg/ cm2
Max temperature 80c
Modified version for high temp up to 200c
Modified version for molasses and vacuum Application
Higher aesthetic valve

Horse Power and Capacity Chart :

Pump Model	Inlet Outlet Size	Capacity			Recommended Motor HP Differential Pressure Of X kg/cm2 With 1500 SSSU Volscosity & Specific Gravity @0.8g/CC										WT.Of Bare Shaft Pump In KG
Pump Model	Inlet Outlet Size	LPM	US GPM	M3/hr	1	2	3	4	5	6	7	8	9	10	WT.Of Bare Shaft Pump In KG
PG-050	1/2*1/2	20	5.30	1.20	0.50					0.75					2.80
PG-075	3/4*3/4	30	7.92	1.80	0.50			0.75			1.00				4.50
PG-100	1*1	50	13.20	3.00	0.50		0.75		1.00		1.50				6.20
PG-125	1 1/4*1 1/4	75	19.80	4.50	1.00		1.50			2.00			3.00		8.50
PG-150	1 1/2*1 1/2	110	29	6.60	1.50		2.00		3.00			5.00			10.50
PG-200	2*2	225	59.40	13.50	3.00			5.00			7.50				18.00
PG-250	2 1/2*2 1/2	350	92.50	21.00	5.00		7.50		10.00			12.50			27.30
PG-300	3*3	500	131.60	30.00	10.00		12.50		15.00			20.50			37.00

Dimensions:

PART	MOC	VISCOSITY	SPEED	CAPACITY
CASING	CI GR 20	UP TO 500CST	1500 RPM	100%
R.V. COVER	CI GR 20	500-1500 CST	1000 RPM	66%
GLAND COVER	CI GR 20	1500-5000 CST	750 RPM	50%
SHAFTS	EN 9- H & G	5000-15000 CST	500 RPM	33%
GEARS	EN-8	15000-30000 CST	380 RPM	25%
GLAND SEAL	OIL SEAL	30000-50000 CST	300 RPM	20%
SHAFT BRG	SINTREAD BRONZE BUSH	50000-100000 CST	200 RPM	13%
R.V. PLUG	BRASS / M.S/ ALUMINUM	100000-200000 CST	150 RPM	10%

Versatile Viscosity Handling

The SKOLL Rotary Gear Pump efficiently manages fluids with viscosities up to 100,000 SSU, making it suitable for a wide range of industrial and fuel transfer applications. Its stainless steel shafts and mechanical seals provide resilience during continuous operation, even with high-viscosity lubricants or oils.

Customizable & Durable Construction

With a cast iron body, SS shafts, and customizable port sizes, the pump meets varied installation needs for industrial use. The powder coated or painted surface treatment ensures rust-proof operation, while the sturdy compact design supports smooth, low maintenance performance in demanding environments.

Reliable Performance & Control

Designed for high efficiency, the pump offers a flow rate up to 300 LPM, head size up to 80 meters, and can withstand pressures up to 10 bar. It is base-mounted with options for manual or automatic control systems, allowing flexibility in integration. Its self-priming capability enhances operational reliability.

FAQs of SKOLL ROTARY GEAR PUMP:

Q: How does the SKOLL Rotary Gear Pump handle high-viscosity fluids?

A: The SKOLL Rotary Gear Pump is built to manage fluids with viscosities up to 100,000 SSU using precision stainless steel shafts and mechanical seals, ensuring smooth, efficient operation with dense oils and lubricants.

Q: What is the process for customizing the pumps port size?

A: Port sizes on the SKOLL Rotary Gear Pump can be tailored according to specific requirements. Customers can specify their desired inlet and outlet dimensions during order placement for optimal compatibility with their systems.

Q: When should I request service or maintenance for this gear pump?

A: Service is available on request and its advisable to schedule regular maintenance based on the frequency and intensity of usage. This ensures continued low-maintenance operation and protects against wear in industrial settings.

Q: Where is the SKOLL Rotary Gear Pump typically installed?

A: This pump is widely used in industrial plants and fuel transfer stations. Its base-mounted, compact design supports easy installation in environments where reliability and space efficiency are crucial.

Q: What are the main benefits of the powder coated or painted surface?

A: The powder coated or painted surface enhances rust resistance and prolongs the pumps lifespan, especially in harsh industrial or petrochemical environments, ensuring consistent and smooth performance.

Q: How can I control the discharge pressure and flow rate of the pump?

A: The pump offers manual or automatic control system options. Operators can adjust settings as required to match application demands, allowing for discharge pressure up to 10 bar and flow rates up to 300 LPM.

Q: What types of fluids can the rotary gear pump transfer?

A: The SKOLL Rotary Gear Pump is suitable for transferring diesel, oil, lubricants, petroleum products, and various chemical liquids, thanks to its robust materials and sophisticated sealing mechanisms.
